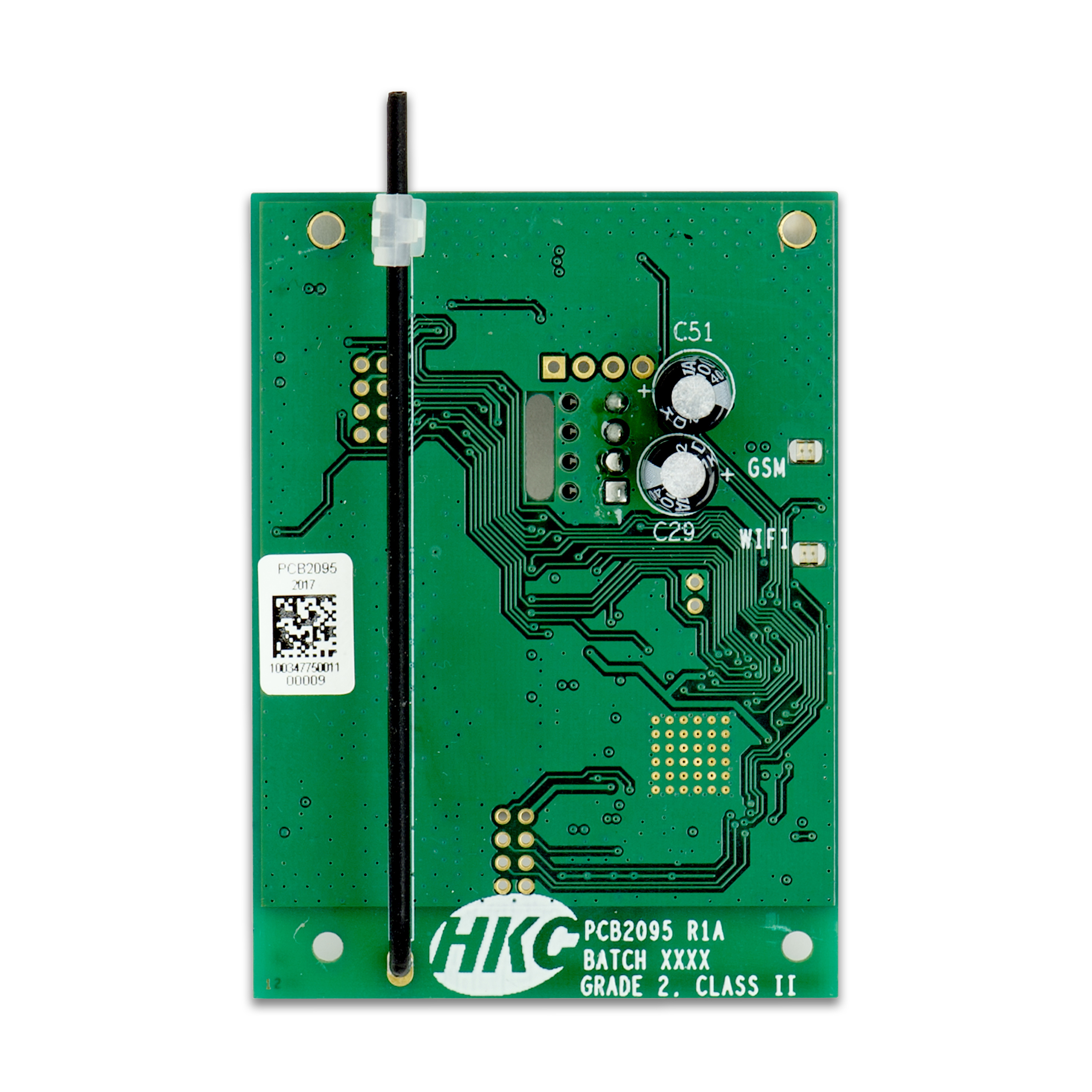

GSM-WiFi - SecureComm Communicator with World SIM Card & Wi-Fi
The GSM-WiFi unit is a Dual Path communicator supplied with a pre-fitted World SIM Card and WiFi module.
• Plugs directly onto Quantum 70 and SW10270 panels (version 4.0 or higher panel software required)
• Dual path communication via GSM network & Wi-Fi
• Works with HKC SecureComm App
• Alarm reports from the System via SmartPhone app and SMS text messaging
• Jam Detection & Heartbeat connection monitored
• Supports IP Reporting to Monitoring Centre/ARC
• Can be configured to signal Monitoring Centre/ARC in the event of a loss of communication
• Supports high-speed upload/download via SmartLink700 engineer software
• Pre-soldered with SecureComm data World SIM
• Current: Quiescent, 30mA. Transmit, 70mA
• Temperature: -10 to +40°C
• Weight: 20g
• Size: 70mm x 50mm x 24mm
• EN 50136-1: SP3 & DP2 with 10 minute polling
• EN 50131-1: ATS 4, Class II
• BS 8243 & PD 666
• EN 50136-1, Category S2 Environmental Class II
