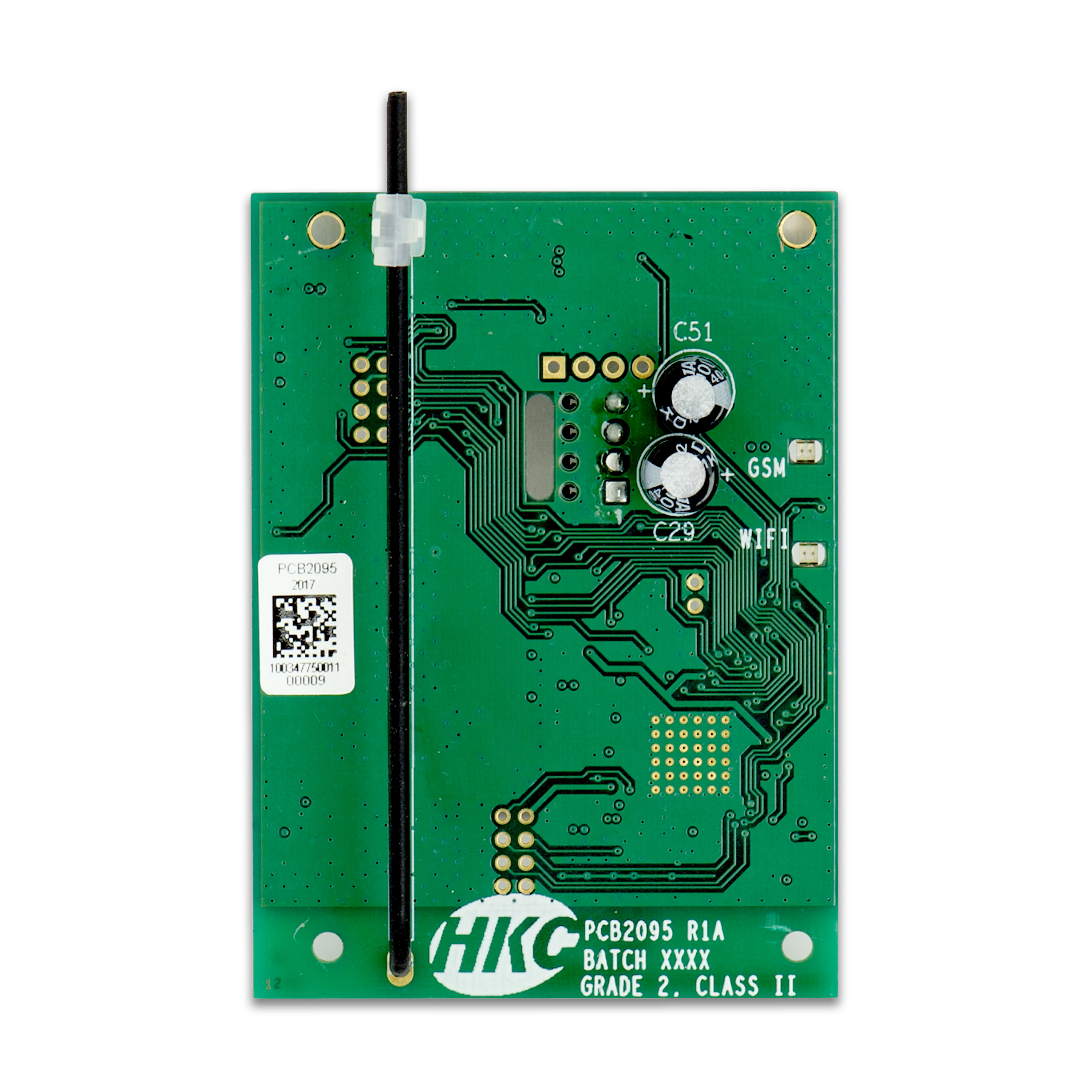

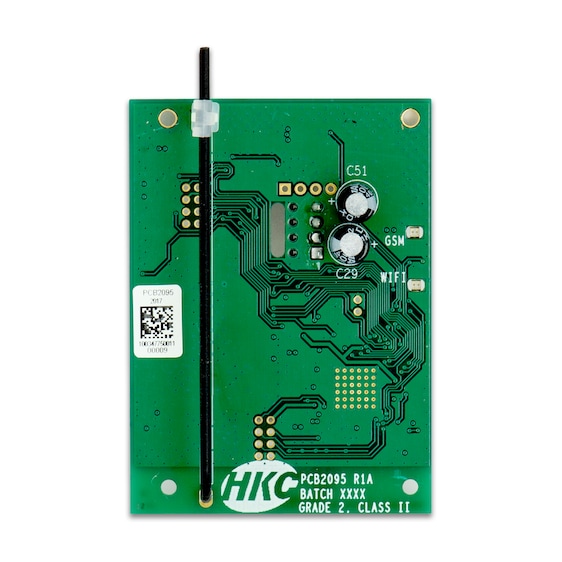

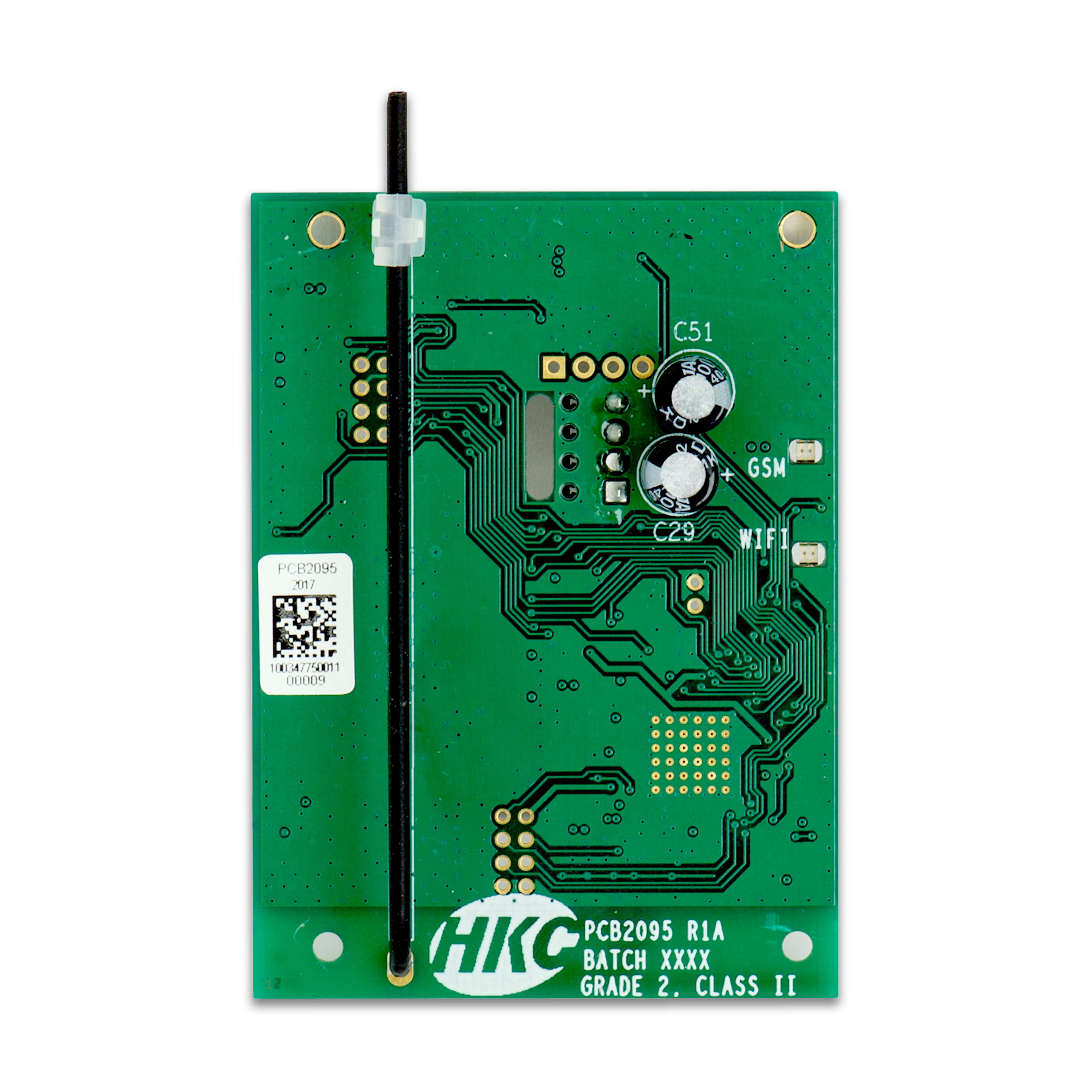

GSM-WiFi - SecureComm Communicator with World SIM Card & Wi-Fi
The GSM-WiFi unit is a Dual Path communicator supplied with a pre-fitted World SIM Card and WiFi module.
• Plugs directly onto Quantum 70 and SW10270 panels (version 4.0 or higher panel software required)
• Dual path communication via GSM network & Wi-Fi
• Works with HKC SecureComm App
• Alarm reports from the System via SmartPhone app and SMS text messaging
• Jam Detection & Heartbeat connection monitored
• Supports IP Reporting to Monitoring Centre/ARC
• Can be configured to signal Monitoring Centre/ARC in the event of a loss of communication
• Supports high-speed upload/download via SmartLink700 engineer software
• Pre-soldered with SecureComm data World SIM
• Current: Quiescent, 30mA. Transmit, 70mA
• Temperature: -10 to +40°C
• Weight: 20g
• Size: 70mm x 50mm x 24mm
• EN 50136-1: SP3 & DP2 with 10 minute polling
• EN 50131-1: ATS 4, Class II
• BS 8243 & PD 666
• EN 50136-1, Category S2 Environmental Class II
• Plugs directly onto Quantum 70 and SW10270 panels (version 4.0 or higher panel software required)
• Dual path communication via GSM network & Wi-Fi
• Works with HKC SecureComm App
• Alarm reports from the System via SmartPhone app and SMS text messaging
• Jam Detection & Heartbeat connection monitored
• Supports IP Reporting to Monitoring Centre/ARC
• Can be configured to signal Monitoring Centre/ARC in the event of a loss of communication
• Supports high-speed upload/download via SmartLink700 engineer software
• Pre-soldered with SecureComm data World SIM
• Current: Quiescent, 30mA. Transmit, 70mA
• Temperature: -10 to +40°C
• Weight: 20g
• Size: 70mm x 50mm x 24mm
• EN 50136-1: SP3 & DP2 with 10 minute polling
• EN 50131-1: ATS 4, Class II
• BS 8243 & PD 666
• EN 50136-1, Category S2 Environmental Class II
4G-WiFi - SecureComm Communicator with 4G World SIM Card & Wi-Fi
The 4G-WiFi Dual Path communicator provides the SW10270 and Quantum70 panels with an ultrafast connection to the HKC SecureComm Cloud. The unit is pre-fitted with a 4G Modem & World SIM Card and has a Wi-Fi module onboard.
Universal GSM / WiFi Communicator
The Universal GSM WiFi is ideal for HKC legacy panels and non HKC equipment. It communicates, via HKC's SecureComm using both GPRS and WiFi to deliver signalling up to Grade 3 DP2/SP3
Input Power 12-24VDC 8 Wired Channel Inputs IP Reporting Compatible with SmartLink 700 for programming & diagnostics.
Ethernet Adaptor Card - SecureComm
The LAN Card communicator provides the SW10270 and Quantum70 panels with a connection to the HKC SecureComm Cloud. The unit has an RJ45 connector and can be connected to a switch or router that has access to the internet via an Ethernet cable. Main features: • Compatible with HKC SecureComm2 App and SecureComm Cloud • Alarm notifications via Smartphone app and SMS text messaging • Supports IP Reporting to Monitoring Centre/ARC • Signals Monitoring Centre/ARC in the event of a loss of communication • Supports high-speed upload/download via SmartLink700 engineer software • Requires a SecureComm subscription • Requires control panel v3.1 or greater 4G-WiFi also compatible with GSM-WiFi Extender where it may be needed to be installed away from the control panel
WiFi Card
